Invacom LNBFs

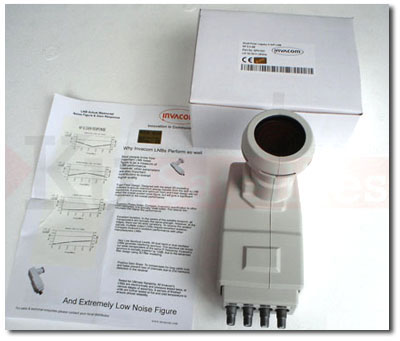

Quad Polar LNBF

The Quad Polar LNBF, model QPH-031, offers 4 outputs for the reception of both Linear (FSS) and Circular (DBS) Ku-Band, with a 0.3dB noise level!

Invacom Quad LNBF

FSS reception:

2 outputs for Linear FSS Ku-Band.
11.7-12.2 GHz
L/O = 10,750

DBS reception:

2 outputs for Circular DBS Ku-Band.
12.2-12.7 GHz
L/O = 11,250

Additional features

Only 0.3dB noise level on each output
50-60dB Gain
Superior isolation and stability over standard LNBFs.

This LNBF can be used with any of our Pansat and Kusat Mpeg-2 DVB receivers and in conjunction with a 75cm or 100cm dish (recommended sizes).

the Invacom QPH-031 online. the Invacom QPH-031 online with a 90cm dish & Stab H2H motor. the Invacom QPH-031 online with a 100cm dish & Stab 120 motor.

You can also download the PDF prochure for this product and a brochure on Invacom LNBFs.

Universal LNBF

The SNH-031 Universal Ku Band LNBF offers 1 output for the reception of Linear (FSS) Ku-Band, with a 0.3dB noise level.

In North America, the 11.7-12.2GHz (linear polarization) is used for the transmission of commercial and international satellite television programming.

The 10.75-11.7GHz range is also used for trans-atlantic feeds (East coast only).

With the SNH-031 you get:

1 output for 10.75-12.2GHz reception (9,750 & 10,600MHz LO via 22Khz signal)
Only 0.3dB max. noise on each output
50-60dB Gain
Superior isolation and stability over standard LNBFs

the Invacom SNH-031 online.
